Using the Schematic Editor, you can create schematics to supplement the infographics in your dashboards or presentations. You can access existing or create new schematics by navigating to the Applications icon in the left side navigation.

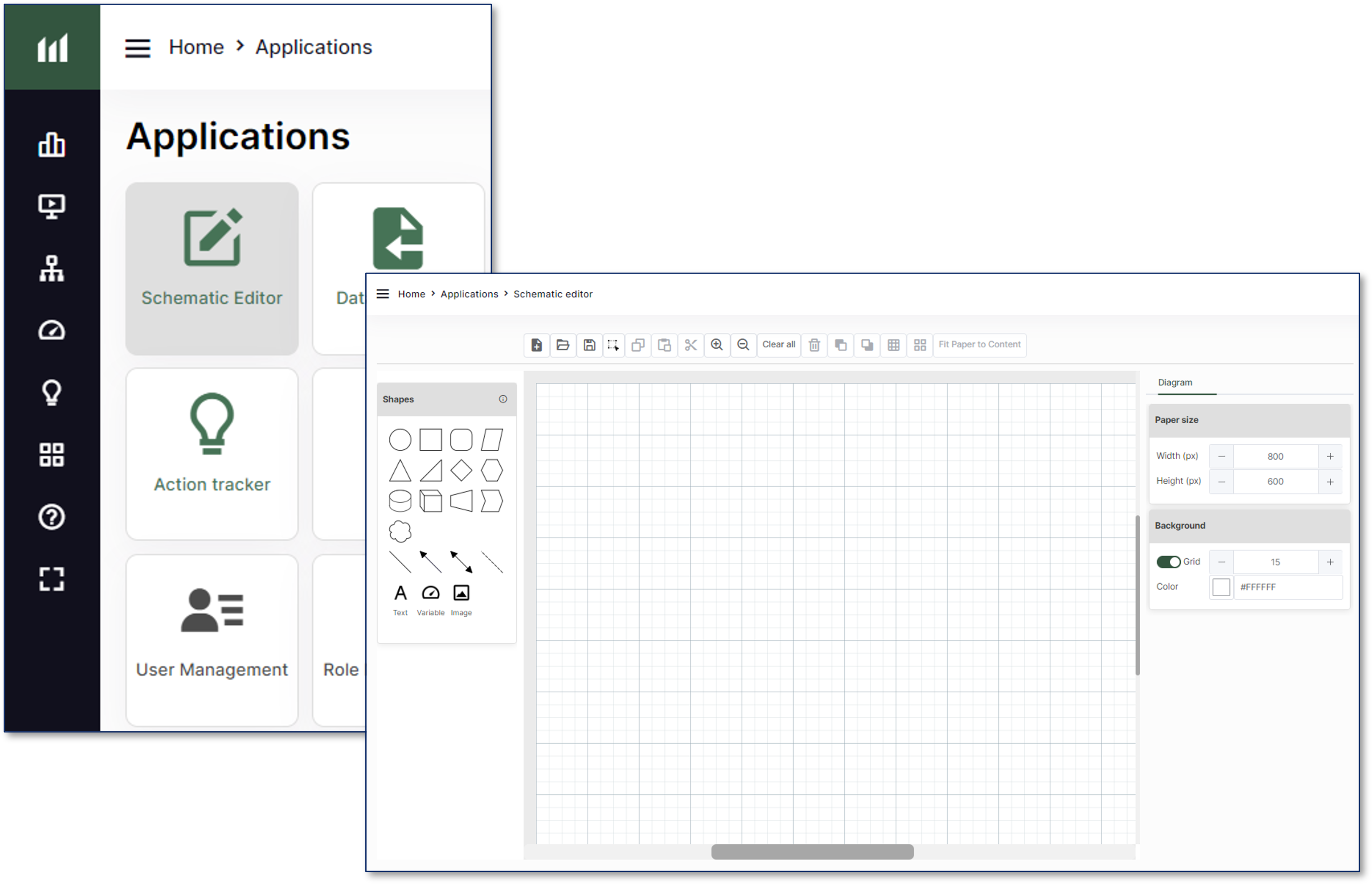

To create a new schematic, on the left panel click Applications > Schematics Editor > New Schematic. Navigating to Browse Schematic directs you to all schematics accessible to your role. Once you have completed your schematic, you can save it by clicking the Save icon from the top toolbar, defining a name and an organization to store the schematic.

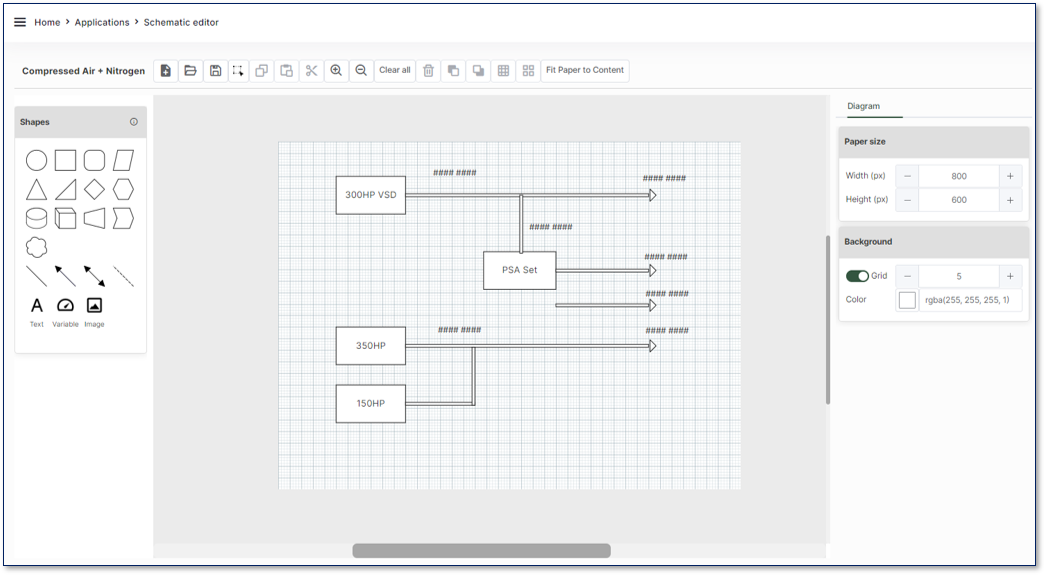

Schematic Builder

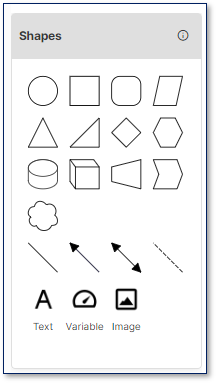

Schematics are made up of shapes, images, text, and variables which can be combined in various ways to best illustrate your process.

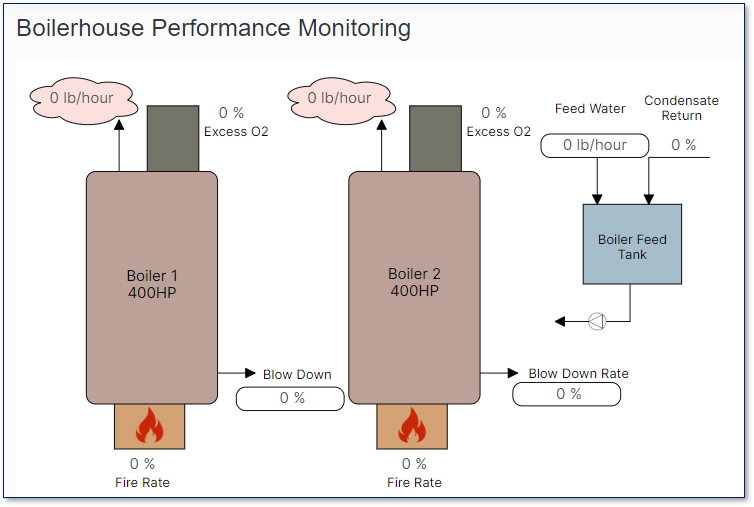

Variables can be added to a schematic to display live process data over a custom timeframe. When the schematic is viewed in a dashboard, the variable data will update automatically to always display the most recent available process information.
